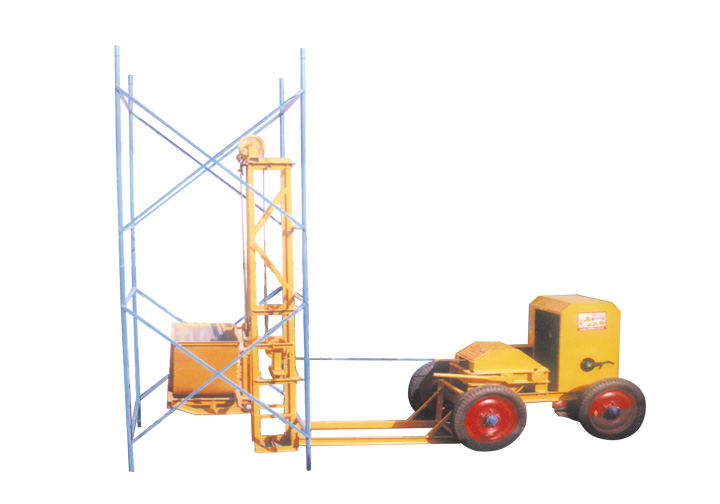

Concrete Material Trolley

Lifting Capacity
- one batch of mixed concrete of 10/7 CFT mixer or 650 kg. gross.

Hight
- the tower is availabe as per your required hight.
- the tower is made from 50X50X6 mm angled section.
- hight of each tower are 3 metres.

Wire Rope
- diameter 11 mm tested rope as per specifications.

Power
- 7.5 HP air-cooled engine or electric motor up to 15 metre hight.
- over 15 metre, 10/14 HP air-cooled engine or electric motor.

Scaffolding
- hoist size 1.5X1.5 metre square area.
- height of each section are 2 metres.

Road Wheels
- 500X19 pneumatic wheels.
- 10\\" C.I. 3.50X8 wheels.
